HRV artifact effects on DFA a1 using alternate software

After writing the previous post on the issues of Kubios artifact correction, I decided to see if alternate HRV software would have the same effects on the DFA a1 index.  My thought was that perhaps Kubios just has some computational error in their calculations.  On the other hand, the artifact corrected rise in the DFA index may simply be the result of applying a given interpolation method.  We will evaluate a well documented software package called HRVanalysis.  This was developed by a group at a French university:

They have a good instructional manual and the initial paper linked above documents the various HRV methodology very well.  In regards to error correction, they use a cubic spline approach:
In order to replace invalid beats, the software therefore provides automatic correction of the RR series, inspired by the algorithm developed by Kamath and Fallen (Kamath and Fallen, 1995). First, false beats are detected using Cheung's algorithm (Cheung, 1981): a high and low threshold are set for the relative variation in successive RR intervals (+32.5% and −24.5%, respectively). Second, for each detected error, the number of missing beats is estimated by comparing the total time duration within the error period with the duration of the immediately preceding beat. If the number of beats to recalculate is 3 or less, a cubic spline interpolation is done. This configuration generally originates from a single supraventricular or ventricular ectopic beat, or from an isolated R-peak missdetection. For 4 or more successive errors, the missing beats are interpolated by copying and inserting the same number of previous RRs between the first and last valid RR Although, these corrections generally results in a clean RR signal, this type of automatic algorithm can produce inconsistent values when the original EKG or RR signal is too corrupted, with lengthy portions of successive false beats. It is therefore recommended to visually inspect and review each series before performing HRV analyses. Additionally to RR correction, the software enables excluding parts of the signal from analysis, and the number of corrections is displayed in the results.

Although I will not go through a full tutorial of using this software, a few things should be pointed out.  In the preferences, there is an option to automatically correct artifacts.  Under most circumstances this should be checked unless one was to do beat by beat correction (which can be done).


Here is what the RR series looks line in the program:
This was from a recording of my Polar H10 indoor cycling file from the last post.  The artifacts are in red.  The boxed areas were the 5 minute intervals at 170 vs 190w as well as the last 2 minutes of each section for computation.

Here is what a cleaner file looks like with only one artifact (arrow).  The RR intervals are all about 500 msec:

In the last post, I compared 5 minutes of cycling at about 170 vs 190 watts, looking at simultaneous tracings of artifact free (Hexoskin) vs Polar H10 (1-4% artifact)
A close up of the last 2 minutes of the190w section (20w above VT1) looks like this:
  • Each blue spike upward is an artifact.  The RR series is plotted over time.  If a beat is missed, the RR gap widens, hence the blue spike of RR time.  If this is a 2 minute window with a HR of 137 bpm, there are 274 beats.  Factoring in 6 artifacts (counting the 4th blue spike twice), the percent artifact would be about 2.2% - well in the "acceptable" range.

With no artifact correction the DFA a1 was about .9 with a HR of 137 bpm:

  • After automatic cubic spline artifact correction, the analysis changes.
  • The DFA a1 decreases to .759:


 A 30 second earlier window (same net length) shows similar results:


How does the same sequence look with no artifacts?

The same 2 minute block of 190w cycling (about 20w above VT1 for 5 minutes) -  Hexoskin tracing with no artifacts:

No RR spikes as expected, steady RR times.

The DFA a1 and other HRV parameters came out to this:
  • The DFA a1 is .498 with a mean HR of 137 bpm.
  • If the 2 minute window is shifted 30 seconds earlier the DFA a1 result is about the same:

Summary:
  • The bottom line is that artifact correction done by either Kubios automatic, Kubios threshold or a different HRV software using cubic spline interpolation will all lead to elevation of the DFA a1 index as compared to a recording with no artifact (Hexoskin).  This seems a limitation of the artifact correction methods and not an intrinsic bug in Kubios.
  • The HRVanalysis software is a powerful tool and in many respects comparable to the free version of Kubios.  The team responsible for it's creation and maintenance should be proud of their work.
  • As discussed in the previous post, reliance on the DFA a1 change from correlated to uncorrelated white noise values to delineate training zone 1 to 2 transition (VT1) could be of questionable accuracy with current artifact correction methods.
  • It is beyond the scope of this brief post to speculate on what limit of artifacts are reasonable to get accurate DFA a1 results.  However, the Polar tracings in this and the previous post had 1-4% artifacts which is generally deemed acceptable.  It is clearly not.
  • The effects of artifacts on higher power intensity associated DFA a1 decline may not be as critical since we are less interested in zone 3 effects.

Sunday, December 22, 2019

DFA a1 and Zone 1 limits - the effect of Kubios artifact correction

In several prior posts, the use of the non linear HRV index, DFA a1 was discussed as a marker of zone 1 to zone 2 transition.  This of course coincides with the VT1/LT1, however since both parameters can be subject to error, an accurate assessment of DFA a1 may be an even better training zone marker.  Also in a prior post, a warning was given about the effects of correcting artifacts in the RR data by the Kubios software.  Although the literature review was sound, the window length I used for deriving DFA a1 was not optimal.  The recommended window of measurement for this index should be 2 minutes.  I decided to do another set of comparisons using the proper window time (2 min).  To simplify the issue only 2 cycling power intervals were done, VT1 power and 15-20 watts higher.  In a perfect scenario, the DFA a1 would be about .7 at VT1 power and suppress close to .5 (white noise) with just another 15 or 20 watts added.

The question is: Does the presence of even minimal "acceptable" artifacts create an erroneous DFA a1 result that would yield the wrong zone 1-2 demarcation?  I am using the latest version of Kubios premium and extracted the DFA a1 results computed every 20 seconds of the past 2 minutes of each activity.



The first test was done on an indoor trainer with very steady power and little body motion.  The second was done outside on a smooth road.  In both cases, the Polar H10 belt was worn with the Hexoskin "Pro" shirt and plenty of conductive gel was used.

Here is a listing of the first test indoors with artifacts, DFA a1 values for the Polar H10 using both medium and autocorrection.  The free version will only use the medium correction method.


Which graphs out as such.
The first half is at 168 watts and the second is at 186watts:

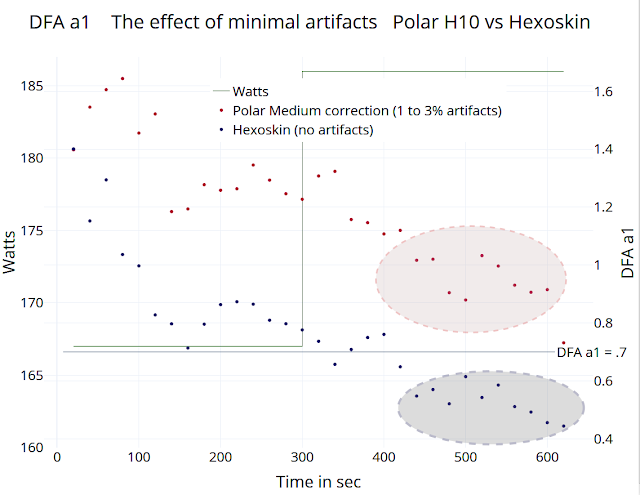

  • The big issue is the shift to higher DFA a1 complexity with artifact correction.  This occurs with either Auto or Threshold correction methods in Kubios.  I listed the raw data so you can see for yourself.
  • The blue dots are the zero artifact values which stay remarkably stable in the .7 to .8 range at the VT1 power, with prompt suppression to .5 (white noise) just 20 watts higher.
  • The red dots are the Polar derived reading with low artifacts.  Although there is a change in DFA from low to higher power, it is substantially muted and well above the .7 cutoff at all times.
  • The Hexoskin had zero artifacts, so no correction is needed.
  • If I was attempting to stay in zone 1, or was testing myself for the DFA a1 transition point of .7, the Polar (with artifact correction) would have misrepresented the true values.
  • In my opinion this is extremely important to know.  Inappropriate (high) exercise efforts will occur if one is relying on the DFA a1 to delineate zone 1 to 2 transition.  Reproducing these findings across sessions and individuals will not be reliable either.

How does outdoor look?
Six minute intervals were done at 170 then 190 watts on a smooth road.  This was an hour after the indoor session.
Raw data:


With the DFA a1 comparison below:
Blue dots are the artifact free Hexoskin DFA a1 values, red from the Polar with Auto artifact correction:

  • Again we see that the DFA a1 is shifted higher in the face of artifacts with Kubios correction.  This occurs with either type of correction method.
  • In the artifact free tracing, there is a sharp transition from correlated to uncorrelated (white noise) in the DFA a1 tracing with just a 20 watt increment of power (blue circle).  This does not occur in the artifact corrected tracing (red circle).

Summary:
  • Both of these examples serve as a warning.  Given the findings here, the current artifact correction methods of Kubios will increase the DFA a1 complexity to enough of a degree to misrepresent zone 1 transition and VT1.
  • I am not implying that the Polar H10 is artifact prone.  However in my situation, I rarely get clean tracings.  On the other hand, the Hexoskin is generally near artifact free, even at heart rates near 180 bpm.
  • If one is relying on getting an accurate DFA a1 during dynamic exercise it seems essential to avoid artifacts at this time (and not rely on correction).
  • Perhaps in the future, Kubios or other HRV software will be able to correct RR artifacts without substantial effects on DFA a1.
  • Finally, the use of Kubios artifact correction can lead to situations where both a given individual's findings or research investigation into DFA a1 will yield erroneous results.

Part 2 - HRV artifact effects on DFA a1 using alternate software

Thursday, November 21, 2019

Stryd running power - validation with VO2 testing

I am always looking for interesting wearable devices but since I don't run, have neglected that particular sport.  I recently reviewed some impressive Stryd data metrics and wanted to share them.  First, what is Stryd?  It is essentially a power meter for runners.  Using various motion sensor data fields and rules of physics it is able to compute effective running power.  The hardware includes both 3-axis gyroscope, 3-axis accelerometer and now wind sensing in the newest version.



Is this tech new?  No, in fact many years ago I used something called an "Ibike", now rebranded as the "Powerpod".  This device used similar principles of physics to estimate cycling power:

Unfortunately, it was a pain to calibrate and was not very accurate compared to conventional power meters.

Given my prior poor experience with the "Powerpod" and my personal avoidance of running (bad knees), I never paid much attention to Stryd.  However, recently my friend the cross country skier did his VO2 (near) max test and was wearing the Stryd.  This gives us an ideal opportunity to see how well the Stryd tracks with VO2.  Why is this important?  With cycling power, we have the simple ability to test an established strain gauge related power meter (like the Powertap, Assomia) against something like the Powerpod that uses environmental sensors (speed, wind, acceleration).  The Stryd has no easy direct comparison device.  But, since work rate (power) is linearly related to VO2 (oxygen consumption), especially up to the second lactate threshold, we can benchmark the Stryd to an alternate reliable benchmark.

Are there any validation studies?
I searched through Pubmed and found very little published work on the Stryd.  The company claims to have VO2 vs Stryd power testing results on their website, but of course that is open to skepticism.

We do have this comparison study:


Which does not look good at all.  A very weak relation of Stryd power to VO2 exits, hence their conclusion:
The main issue here is that the test was done with an early device, the Stryd Pioneer which is a chest mounted triaxial accelerometer:

I almost wonder if they would have been better served not even producing this device.

In response to the comment from the Stryd developers (see below), here is the reply from the authors of the above paper:


A different study looked at the newer Stryd from a different point of view.  They simply wanted to see how consistent the measure of power was on a treadmill at a constant velocity.  Theoretically, with no change in wind, incline or running dynamics, there should be a steady power output as in cycling on an indoor trainer at constant cadence.

From the study:
To the best of the authors’ knowledge,
just one study has examined its validity and reliability (in this case,
to measure spatiotemporal gait characteristics [9]), with no data
to demonstrate the validity and reliability of this device for measuring
power and related variables
. For this study, only two out of
twelve metrics were used (running velocity and power output).
The agreement between measured intervals (watts) at the same treadmill speed was good.
For example the last graph showed near identical power over 0-120 vs 0-180 seconds:

With the conclusion:
The results show that
power data during running, as measured through the Stryd™ system,
is a stable metric with negligible differences, in practical
terms, between shorter (i. e., 10, 20, 30, 60 or 120 s) and longer
recording intervals (i. e., 180 s).
In summary, these results show that power output during running,
measured through the Stryd™ system, is stable over time
when velocity is constant and under controlled conditions, with no
differences between different time intervals recorded during a
3-min run. Nevertheless, it is worth noting that the analysis conducted
shows that longer recording intervals yield smaller systematic
bias and narrower limits of agreement.
Therefore, if maximum
accuracy is required (e. g., scientific approach), longer recording
periods must be used (i. e., 2–3 min).
  • So one still needs to be careful with the shorter time recordings, but they are still reasonable.

We still don't have a published VO2 vs power study of the newer, foot mounted unit.  Thanks to my friend the cross country skier we at least have data in one indivisual.

To start with, let's look at what VO2 vs cycling power looks like from my data.  This was using the Assomia Duo pedals (1% accuracy) and VO2 done at the University of Florida Sports Performance Center.

Here is an example from my VO2 max testing - cycling power vs VO2 (oxygen usage):
(VO2 average from last 60 sec of interval, cycling power average from each 3 minute stage)

Note the last value falls off (it's an error in the gas exchange measurement), we won't count that.  Otherwise, the curve is quite linear, with only a few watts deviation off the fit.

How did the cross country skier do in regards to VO2 vs Stryd power?
Here is his treadmill test, plotting power over time with each stage encompassing 5 minutes, followed by a brief time between stages to do lactate testing, then resumption of running.  The trend of higher power per stage is very evident.

A close up of the last 2 stages shows no major lag from zero power to full treadmill speed.


Therefore, "heart rate like lag" is avoided (from Kubios):



Finally, the all important VO2 vs power:
(VO2 average from last 60 sec, Stryd power from the entire 5 minute interval)


  • This looks every bit as close as my cycling ramp shown above!

Why do we need power when the heart rate to VO2 curve is just as good if not better?
After all the heart rate to VO2 relation is very tight and predicable.
  • In this case, if he knew his heart rate, the VO2 would be easily extrapolated.
Why do we need power?
  • One problem with simple heart rate is measuring high intensity work rates during HIT.  For instance, if you do a 30 second burst interval at high power, the heart rate does not fully stabilize until the interval is over.
  • In addition, if you train by pace/speed, knowing the speed is problematic given the state of GPS tracking accuracy.
  • Many studies point to the importance of intensities beyond LT2/MLSS as critical for optimal training.  Those higher power zones can't be properly monitored by heart rate, especially in the early part of the stage.
  • If one is an advocate of the "fast start" strategy, power is an essential way of achieving that type of session.  Careful power modulation is the only way to perform a fast start interval.
Where we don't necessarily need power monitoring is during the mind numbing, long, slow runs that should be kept below VT1.  In that case, heart rate stability kinetics are very acceptable to keeping effort down.  However, in situations like hill and trail running, having running power may be of additional benefit to staying in the proper zone 1 location.

Summary:
  • The current Stryd device appears to measure power at stable levels at constant treadmill speeds.  The older Pioneer device is not recommended.
  • According to a plot of VO2 vs power in one individual, the Stryd relative power is linear.  In other words, with a given percent boost in power, the percent oxygen consumption rises the same relative amount.  This indicates there is relative accuracy of the device.  Absolute accuracy is not easily testable with this method.
  • Usage with HIT and running intensities above MLSS would make sense since heart rate will lag well behind the effort.  Studies have shown the downsides to intervals at "threshold" intensity (MLSS).  Stryd usage may be a way to avoid excessive zone 2 activity.
  • Usage in recovery and zone 1 training is potentially useful especially with less than stable running conditions.  As discussed in previous posts, high volumes of zone 1 are essential to proper performance development.
Many thanks to my friend for sharing his data!

See also:
How to get your training zones from HRV and muscle O2 data
VT1 correlation to HRV indexes - revisited
